Availability: | |
---|---|
| |
The ZTmm LS Series cabinet without any gap to mix the hot airflow and cold airflow.
Optional doors
Various door optional, glass,vented or solid doors.
More space for cable management
Vertical installation metal management in 800mm wide or 1000mm deep rack provide more space for network cable management.
High Loading capacity
Static loading capacity up to 1200KG.
The ZTmm LS Series cabinet without any gap to mix the hot airflow and cold airflow.
Optional doors
Various door optional, glass,vented or solid doors.
More space for cable management
Vertical installation metal management in 800mm wide or 1000mm deep rack provide more space for network cable management.
High Loading capacity
Static loading capacity up to 1200KG.
Adopt high quality cold rolled steel plate, the standard color is black matt, other colors can be customized;
Front door arc design, round hole or hexagonal hole, ventilation rate up to 75%;
Thickness of vertical columns: 2.0mm
Bearing capacity test (static load no less than 1800kg, dynamic load no less than 1100kg);
The structural design of seismic grade 8 and 9 has been tested by the authoritative testing department;Degreasing, phosphating, pickling and electrostatic spray treatment of cabinet and parts;
The mounting bracket is provided with scale mark to facilitate accurate installation of equipment;
The structure is improved to have more reasonable equipment installation space.
Adopt high quality cold rolled steel plate, the standard color is black matt, other colors can be customized;
Front door arc design, round hole or hexagonal hole, ventilation rate up to 75%;
Thickness of vertical columns: 2.0mm
Bearing capacity test (static load no less than 1800kg, dynamic load no less than 1100kg);
The structural design of seismic grade 8 and 9 has been tested by the authoritative testing department;Degreasing, phosphating, pickling and electrostatic spray treatment of cabinet and parts;
The mounting bracket is provided with scale mark to facilitate accurate installation of equipment;
The structure is improved to have more reasonable equipment installation space.

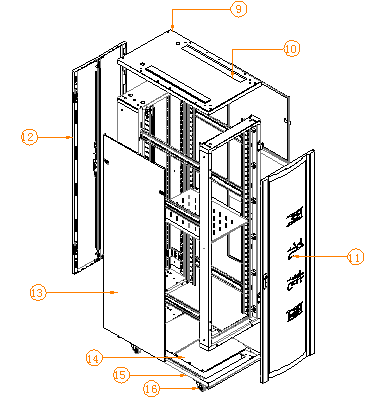

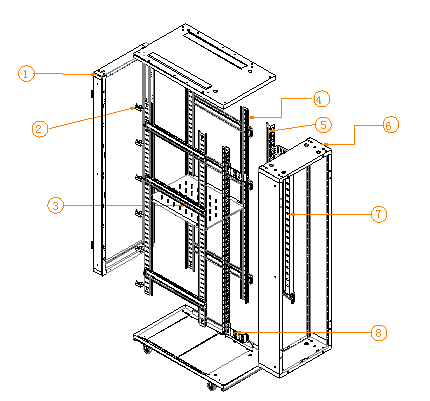

S/N | Name | Meterial | Quantity |
1 | Front enclosure frame | SPCC1.2 | 1 |
2 | Cable management | SGCC1.5 | 10 |
3 | Horizontal rial | SGCC1.2 | 1 |
4 | Vertical rial | SGCC2.0 | 4 |
5 | Verticalcable management | SGCC1.5 | 2 |
6 | Rear cnclosure frame | SPCC1.2 | 1 |
7 | PDU | ||
8 | Removed PDU mounting palte | SGCC1.5 | 4 |
9 | Roof | SPCC1.2 | 1 |
10 | Brush panel | Fireproof | 2 |
11 | Front door | SPCC1.2 | 1 |
12 | Rear door | SPCC1.2 | 1 |
13 | Side panel with lock | SPCC1.2 | 2 |
14 | Bottom cover plate | SGCC1.5 | 2 |
15 | Cover plate | SPCC1.2 | 1 |
16 | Casters | SPCC1.2 | 4 |
S/N | Name | Meterial | Quantity |
1 | Front enclosure frame | SPCC1.2 | 1 |
2 | Cable management | SGCC1.5 | 10 |
3 | Horizontal rial | SGCC1.2 | 1 |
4 | Vertical rial | SGCC2.0 | 4 |
5 | Verticalcable management | SGCC1.5 | 2 |
6 | Rear cnclosure frame | SPCC1.2 | 1 |
7 | PDU | ||
8 | Removed PDU mounting palte | SGCC1.5 | 4 |
9 | Roof | SPCC1.2 | 1 |
10 | Brush panel | Fireproof | 2 |
11 | Front door | SPCC1.2 | 1 |
12 | Rear door | SPCC1.2 | 1 |
13 | Side panel with lock | SPCC1.2 | 2 |
14 | Bottom cover plate | SGCC1.5 | 2 |
15 | Cover plate | SPCC1.2 | 1 |
16 | Casters | SPCC1.2 | 4 |
Model | Capacity(U) | Dimension(W*D*H) | BU Packing Dimension | Volume |
ZTmmLS6642 | 42 | 600*600*2000 | 650*650*2050 | 0.866 |
ZTmmLS6842 | 42 | 600*800*2000 | 650*850*2050 | 1.133 |
ZTmmLS61042 | 42 | 600*1000*2000 | 650*1050*2050 | 1.399 |
ZTmmLS61242 | 42 | 600*1200*2000 | 650*1250*2050 | 1.666 |
ZTmmLS8842 | 42 | 800*800*2000 | 850*850*2050 | 1.481 |
ZTmmLS81042 | 42 | 800*1000*2000 | 850*1050*2050 | 1.830 |
ZTmmLS81242 | 42 | 800*1200*2000 | 850*1250*2050 | 2.178 |
ZTmmLS61048 | 47 | 600*1000*2200 | 650*1050*2272 | 1.551 |
ZTmmLS61248 | 47 | 600*1200*2200 | 650*1250*2272 | 1.846 |
ZTmmLS81048 | 47 | 800*1000*2200 | 850*1050*2272 | 2.028 |
ZTmmLS81248 | 47 | 800*1200*2200 | 850*1250*2272 | 2.414 |
Model | Capacity(U) | Dimension(W*D*H) | BU Packing Dimension | Volume |
ZTmmLS6642 | 42 | 600*600*2000 | 650*650*2050 | 0.866 |
ZTmmLS6842 | 42 | 600*800*2000 | 650*850*2050 | 1.133 |
ZTmmLS61042 | 42 | 600*1000*2000 | 650*1050*2050 | 1.399 |
ZTmmLS61242 | 42 | 600*1200*2000 | 650*1250*2050 | 1.666 |
ZTmmLS8842 | 42 | 800*800*2000 | 850*850*2050 | 1.481 |
ZTmmLS81042 | 42 | 800*1000*2000 | 850*1050*2050 | 1.830 |
ZTmmLS81242 | 42 | 800*1200*2000 | 850*1250*2050 | 2.178 |
ZTmmLS61048 | 47 | 600*1000*2200 | 650*1050*2272 | 1.551 |
ZTmmLS61248 | 47 | 600*1200*2200 | 650*1250*2272 | 1.846 |
ZTmmLS81048 | 47 | 800*1000*2200 | 850*1050*2272 | 2.028 |
ZTmmLS81248 | 47 | 800*1200*2200 | 850*1250*2272 | 2.414 |
