Availability: | |
---|---|
| |
Substantially faster and less expensive than traditional data center buildouts.
100% ROI within 12 months of deployment
Flexible,efficient to operate and easy to manage.
Can use the building’s existing power infrastructure
Enables the use of best-in-class cooling and UPS technologies
Built-in fire suppression systems for compliance
Safety glass and metal containment for fire hazard sagety
100% IT usable space with zero infrastructure overhead.
Substantially faster and less expensive than traditional data center buildouts.
100% ROI within 12 months of deployment
Flexible,efficient to operate and easy to manage.
Can use the building’s existing power infrastructure
Enables the use of best-in-class cooling and UPS technologies
Built-in fire suppression systems for compliance
Safety glass and metal containment for fire hazard sagety
100% IT usable space with zero infrastructure overhead.
Function | Item | Configuration | Specifications |
Enclosure | Dimensions | Standard 42 inches | 600*2000*1400mm(W*H*D) |
Cabinet door | Plexiglass door with appearance modeling | Plexiglass door:front and rear door thickness≥1.2mm,side door thickness ≥1.5mm | |
Ground connection | Reserved for more than two ground points. | BVR6mm2 | |
Shelves | Two pieces per cabinet | 50Kg | |
Cable management | Near the rear door | Vertical cable ring | |
Cooling system | Air conditioner | Rack-mounted or In row | Determine the air conditioning cooling capacity according to the equipment power |
Emergency exhaust | 1 draught fan every enclosure | Air volume239~288CFM | |
Drainage | A water supply pipe, a drain pipe, bottom installation | PPR hot melt pipe ,Flooding:DN25, Discharge:DN40 | |
Power system | UPS | 10KVA to 30KVA | Rack-mounted, single-in single-out orthree-in single-out, on-line UPS, power selection according to project situation |
Power backup | Lead-acid batteries or lithium battery | 7AH, 9AH | |
PDM | 32A or 63A input | Specification :410mm(W)*3U(H)*600mm(D) | |
Configuration: electricity circuit, UPS circuit; 19P air switch at most | |||
Function: intelligent or non-intelligent | |||
Installation: rail installation in rack | |||
PDU | IEC/GB | Vertical or horizontal(less than 8 port) installation | |
Light | LED | Front and rear door installate work lighting, controled by the door or screen touch | |
DC12V power supply, power ≤ 6W | |||
Fire suppression | Fire trace tube | Gas | Optional |
Alarm system | Local and remote | Local lights sound warning, sent to the monitoring room or the control center | |

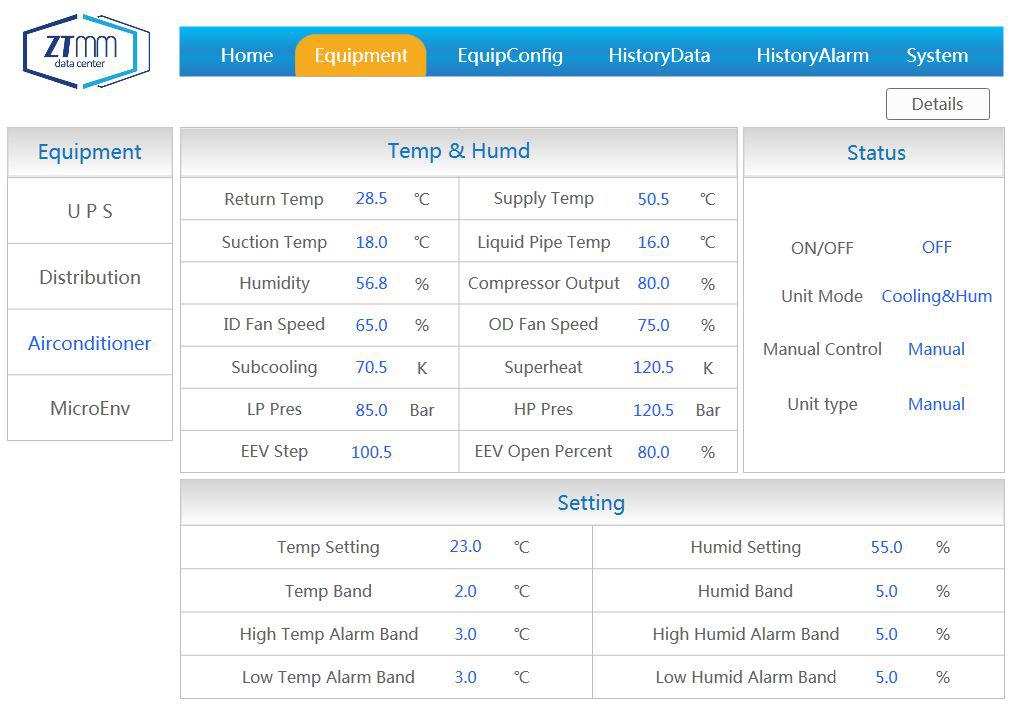

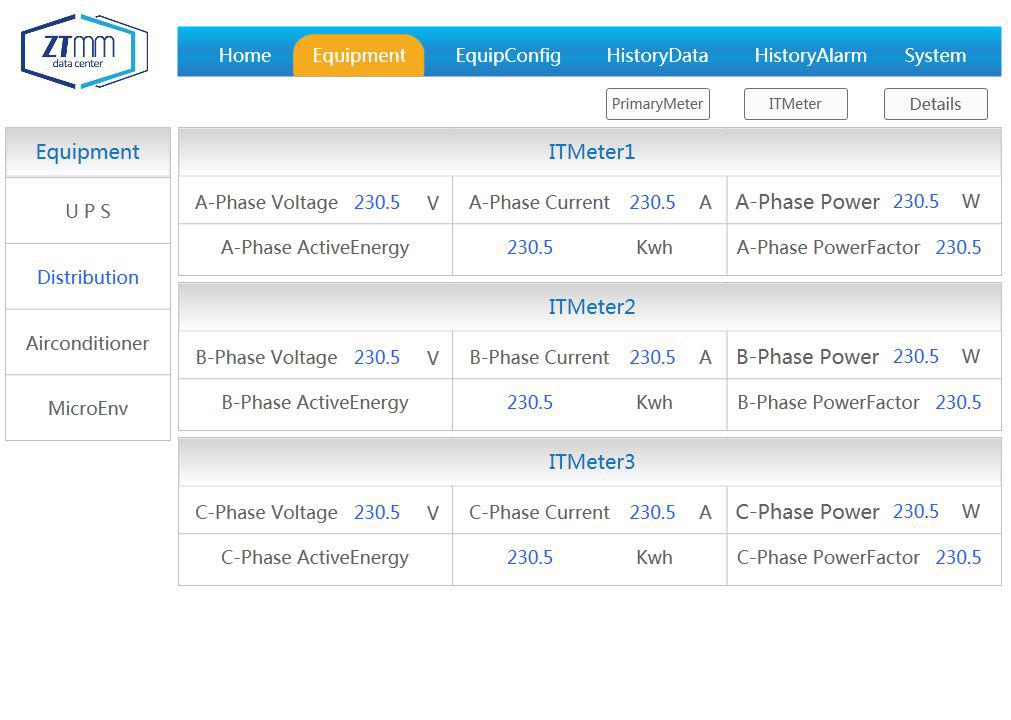

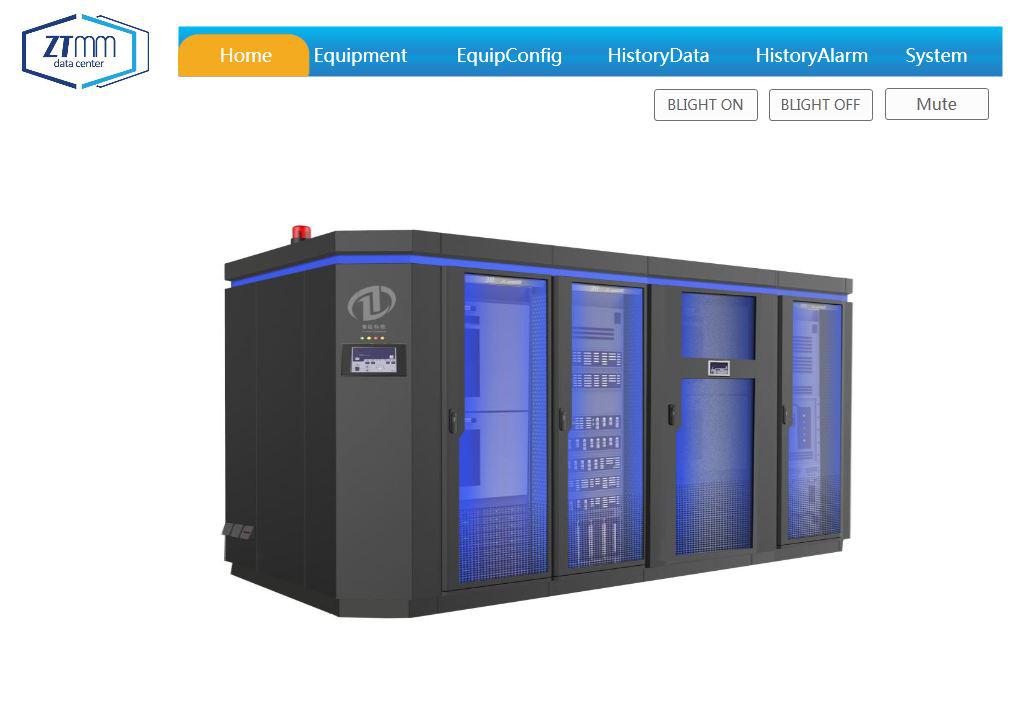

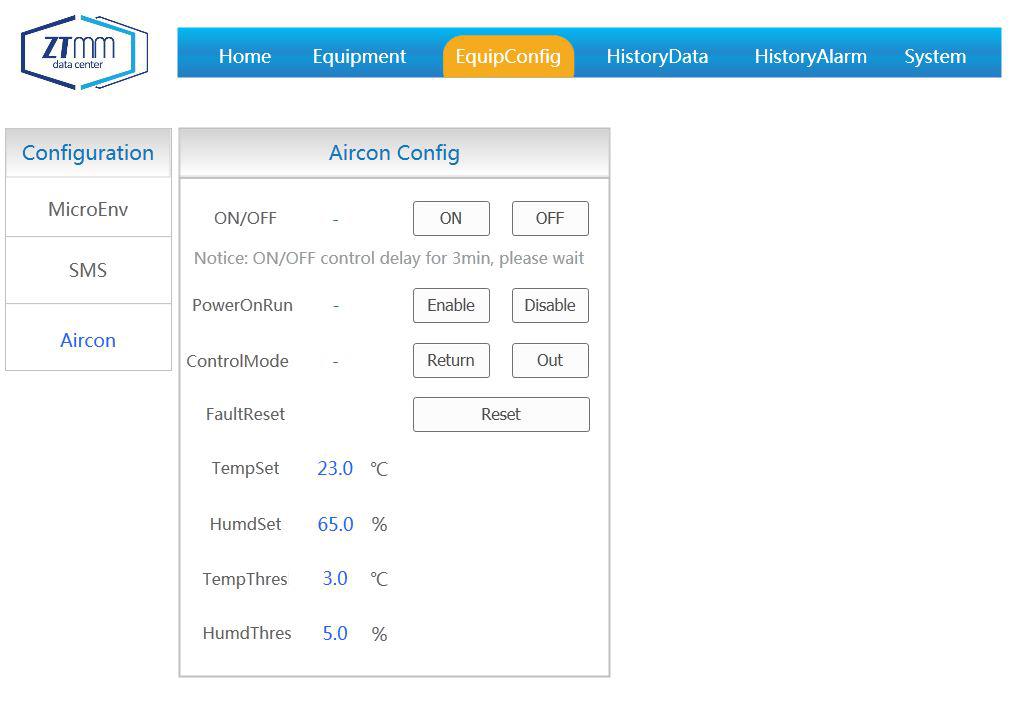

Minitoring system | Display screen | 10 inch touch screen | Optional |
Home A/C restart function | Optional | ||
SMS | Optional | ||
Remote mobile App | Optional | ||
Liquid sensor | Optional | ||
Tem&Hum sensor | Standard configuration | ||
Door magnetic switch | Standard configuration | ||
Smoke sensor | Standard configuration | ||
Web monitoring | Standard configuration | ||
Camera | Optional | ||
Access control | Fingerprint,swipe or password | Optional | |
Package | Dimensions | Per cabinet | 734*2200*1368mm(W*H*D) |
Weight | Per cabinet | 150Kg(no battery pack) |
Function | Item | Configuration | Specifications |
Enclosure | Dimensions | Standard 42 inches | 600*2000*1400mm(W*H*D) |
Cabinet door | Plexiglass door with appearance modeling | Plexiglass door:front and rear door thickness≥1.2mm,side door thickness ≥1.5mm | |
Ground connection | Reserved for more than two ground points. | BVR6mm2 | |
Shelves | Two pieces per cabinet | 50Kg | |
Cable management | Near the rear door | Vertical cable ring | |
Cooling system | Air conditioner | Rack-mounted or In row | Determine the air conditioning cooling capacity according to the equipment power |
Emergency exhaust | 1 draught fan every enclosure | Air volume239~288CFM | |
Drainage | A water supply pipe, a drain pipe, bottom installation | PPR hot melt pipe ,Flooding:DN25, Discharge:DN40 | |
Power system | UPS | 10KVA to 30KVA | Rack-mounted, single-in single-out orthree-in single-out, on-line UPS, power selection according to project situation |
Power backup | Lead-acid batteries or lithium battery | 7AH, 9AH | |
PDM | 32A or 63A input | Specification :410mm(W)*3U(H)*600mm(D) | |
Configuration: electricity circuit, UPS circuit; 19P air switch at most | |||
Function: intelligent or non-intelligent | |||
Installation: rail installation in rack | |||
PDU | IEC/GB | Vertical or horizontal(less than 8 port) installation | |
Light | LED | Front and rear door installate work lighting, controled by the door or screen touch | |
DC12V power supply, power ≤ 6W | |||
Fire suppression | Fire trace tube | Gas | Optional |
Alarm system | Local and remote | Local lights sound warning, sent to the monitoring room or the control center | |
Minitoring system | Display screen | 10 inch touch screen | Optional |
Home A/C restart function | Optional | ||
SMS | Optional | ||
Remote mobile App | Optional | ||
Liquid sensor | Optional | ||
Tem&Hum sensor | Standard configuration | ||
Door magnetic switch | Standard configuration | ||
Smoke sensor | Standard configuration | ||
Web monitoring | Standard configuration | ||
Camera | Optional | ||
Access control | Fingerprint,swipe or password | Optional | |
Package | Dimensions | Per cabinet | 734*2200*1368mm(W*H*D) |
Weight | Per cabinet | 150Kg(no battery pack) |
