Project name | Sub-system | Tianying 20ft 380V | Project name | Sub-system | Tianying 20ft 380V |

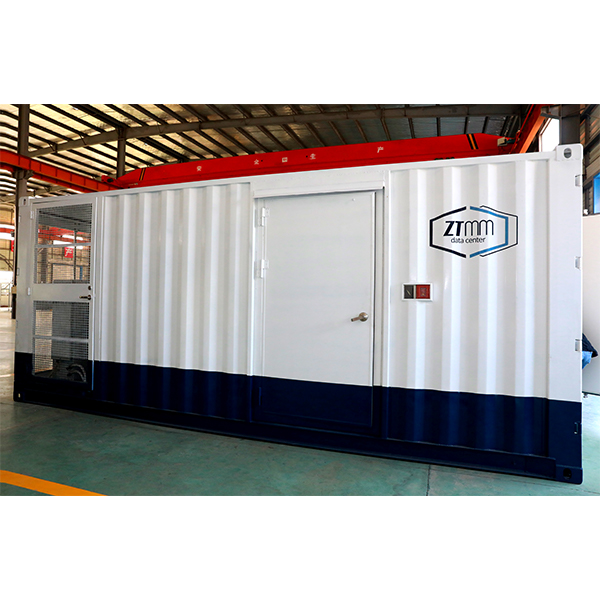

Layout | Dimensions of containe（W*D*H) | 2483mm×6058mm×2896mm | protection | Anti-water and dust | IP55 |

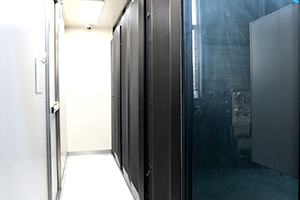

Maintenance aisles dimension | Cold aisle 800mm | Seismic grade | Equivalent intensity of 9 |
Hot aisle 438mm | Fire protection | Automatic fire suppression | Automatic smoke temperature detection, fire extinguishing system with emergency release function |
PSD | IT total load | 24KW | Alarm | Local sound and light alarm, remote alarm |
Single rack power density | 6KW | Gas | Standard sevofluoropropane, fluorosterone (NOVEC1230) can be customized |
PDU | 2*160A,50/60HZ, three phase four wire +PE, 380V/400V/415VAC | Environment monitoring | Dynamic | Standard |
UPS models | 15KVA UPS integrated in PDU | AC | Standard |
UPS capacity | 45KVA ( 2+1) | UPS | Standard |
Battery backup time | ≥10min | T and H | Standard |
Mains distribution pathways | 2 road input | Leakage | Standard |
Lightning protection level | The second level 60KA（8/20） | Door access | Standard |

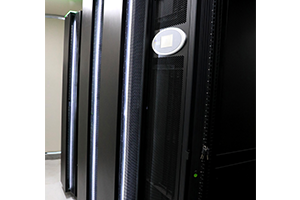

Cabinet and access | Cabinet specification (W*D*H) | 550mm*1000mm*2200mm | CCTV | Standard |
Cabinet capacity | The standard is 42U, others can be customized | Fire suppression | Standard |
Aisles closure mode | The closure of hot aisles | Asset management | Optional |
HVAC | Inrow AC | Refrigerating capacity ≥20KW | Environmental conditions | Environmental temperature range | —15℃~+52℃ |
Work type | 1+1 | Altitude | ≤3000m |
Refrigerant | R410A | Humidity | 20%—80% |
Group control function | Support |
|
|
|
Temperature control range | 18-27℃ |
|
|
|
Humidity control range | 20%-80% |
|
|
|
Humidification way | Electrode humidifying |
|
|
|
