Warrior

Warrior Series Micromodule solution integrated UPS,PDM, Monitoring and battery pack in an enclosure. All parts are prefabricated, pre-installed, pre-tested. On-site installation is simple to achieve rapid deployment. The local and remote monitoring function with web interface can realize romote operation. At the same time, Warrior can be connected with IDC management system,achieving centralized monitoring and unifiedmanagement.

  • Simple

All-in-one design,preassembly,two-hour installation.

  • Security

SMS alarm,remote web platform control, network centralized monitoring,realizing unattended operation.

  • High protection

IP55 protection level, a variety of harsh environments are adapted.

  • Efficient

Saving the space and energy. PUE<1.5.

  • Customized services

Depending on the customer’s demands can provide the overall solution.



视频(占位)


               WARRIOR-061220

WARRIOR-061222

Cabinet size

600*1200*2000mm

600*1200*2200mm

Air conditioner size

internal unit 439*852mm

internal unit 439*852mm

external unit 650*900*400mm

external unit 650*900*400mm

Device space

28U

31U

Weight of cabinet

150KG

165KG

Protection level

IP40

IP40


Function Item Configuration Specifications
Enclosure DimensionsStandard 42 inches 600*2000*1200mm(W*H*D)
Cabinet door

Plexiglass door with

 appearance modeling

Plexiglass door:front and rear door

thickness≥1.2mm,

side door thickness ≥1.5mm

Ground connection

Reserved for more than

 two ground points.

BVR6mm2
Bearing plate  Two pieces per cabinet 50Kg
Cable management Near the rear door Vertical cable  ring
Cooling systemAir condition Rack-mounted  or In row

Determine the air conditioning

cooling capacity according to the equipment power

Emergency exhaust 1 draught fan every enclosure Air volume239~288CFM
Drainage

A water supply pipe, a drain

pipe, bottom installation

PPR hot melt pipe ,Flooding:DN25,

Discharge:DN40

Power system UPS 1KVA to 4KVA

Rack-mounted, single-in single-out or

three-in single-out, on-line UPS,

power selection according to project situation

Power backup

Lead-acid batteries or

lithium battery

7AH, 9AH
PDM16A or 32A inputSpecification :410mm(W)*3U(H)*600mm(D)

Configuration:  electricity circuit, UPS circuit;

19P air switch at most

Function: intelligent or non-intelligent
Installation: rail installation in rack
PDUIEC/GB

Vertical or horizontal(less than 8 port)

installation

LightLED

Front and rear door installate work lighting,

controled by the door or screen touch

DC12V power supply, power ≤ 6W
Fire suppression Fire trace tube GasOptional
Alarm system  Local and remote

Local lights sound warning, sent to the

monitoring room or the control center

Minitoring systemDisplay screen 10 inch touch screenOptional
Home A/C restart functionOptional
SMSOptional
Remote mobile AppOptional
Liquid sensorOptional
Tem&Hum sensorStandard configuration
Door magnetic switchStandard configuration
Smoke sensorStandard configuration
Web monitoringStandard configuration
CameraOptional
Access controlFingerprint,swipe or passwordOptional
PackageDimensions
734*2200*1368mm(W*H*D)
Weight
150Kg(no battery pack)


2bb22996aea81e4bf28ac6d25efb2a9

2eb3d98905c6b6738befa026c38f5a4

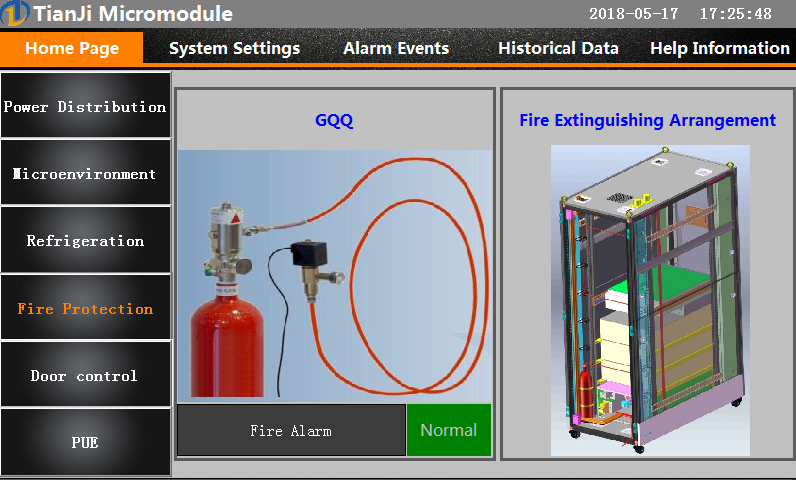

10bd3018fece7d852cf0a7d2e524786

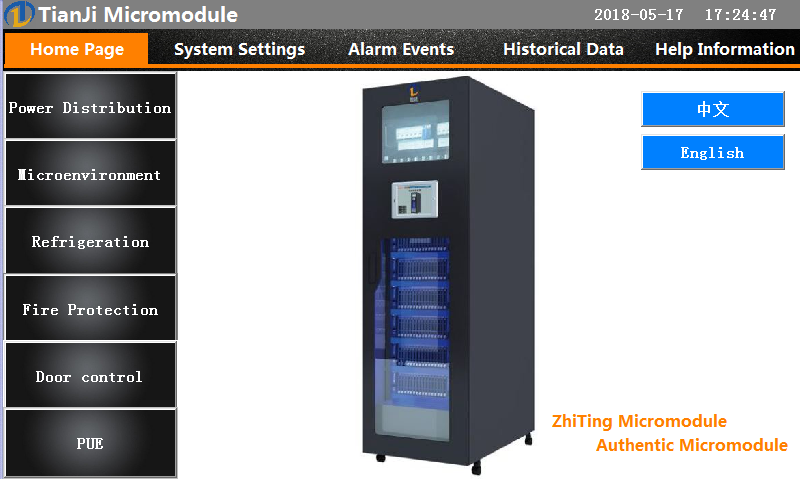

16a49bdb40a3c2a8f7fbdeb9079bef1

25feee2c0d14c3df380bf4098e09823

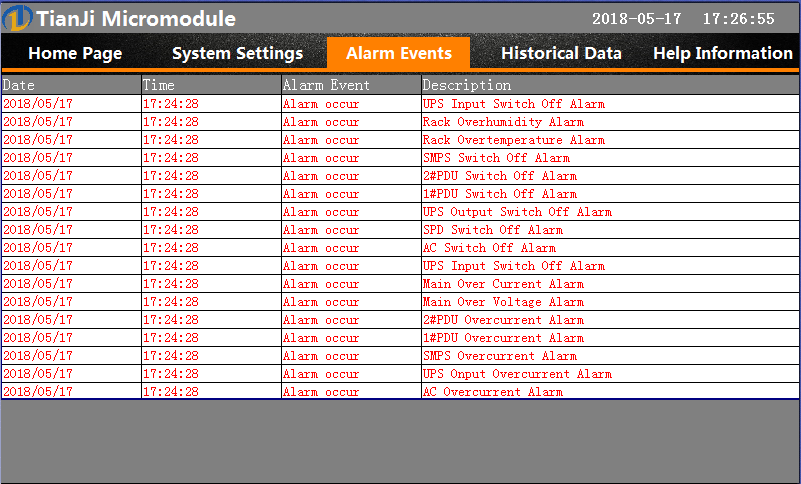

0958ed5d34c0472a9b6cdb9453bea00

6700fd99c0d95e9c920d8688bdd01a1

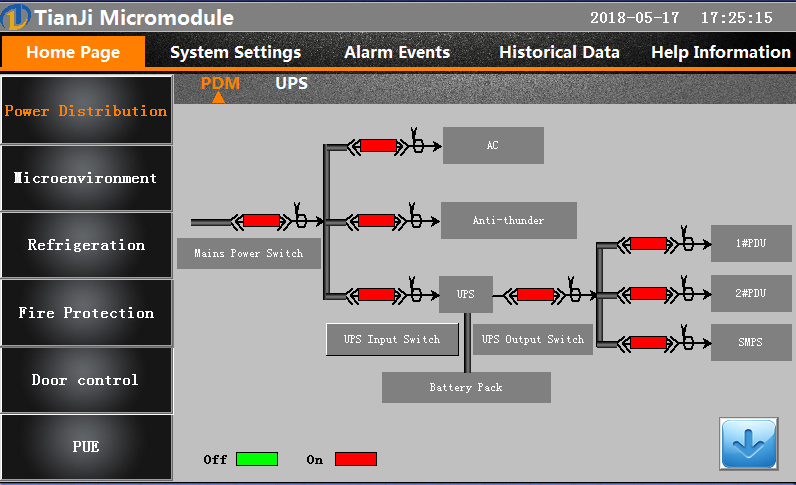

bf134e8e5a068348930639701e96fb2

ed10d758aab96cfdf24377a448291cf

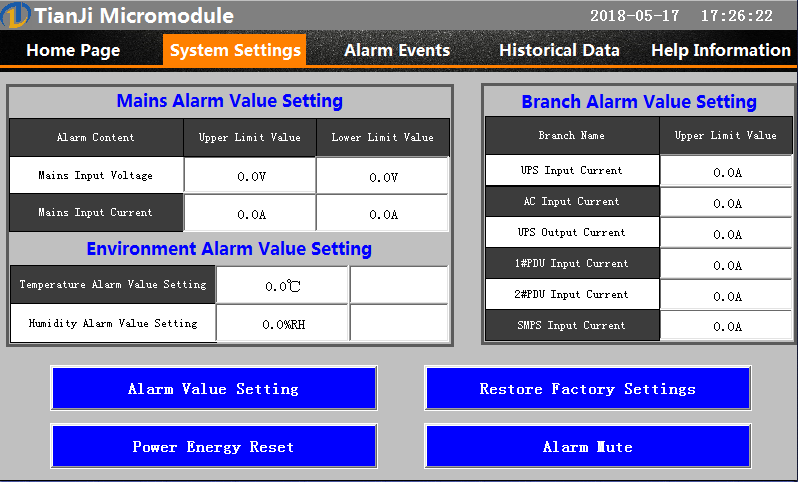

f4ec585e503812126019fab2e14833e
