The ZTmm HS Rack delivers a premium rack solution whenever and wherever IT systems are deployed.
Quick shipment meets demand for rapid deployment
Supports all rack-based equipment and delivers 2.5 inches of additional useable depth
Full complement of accessories including include cable management, airflow management, shelves, handles and support brackets
Tool-less design enables easy equipment installation, adjustments and service
The ZTmm HS Rack delivers a premium rack solution whenever and wherever IT systems are deployed.
Quick shipment meets demand for rapid deployment
Supports all rack-based equipment and delivers 2.5 inches of additional useable depth
Full complement of accessories including include cable management, airflow management, shelves, handles and support brackets
Tool-less design enables easy equipment installation, adjustments and service
Available in 12 standard sizes
Full depth adjustability of the 19” rails
Doors that have 77% perforation and can be hinged on either side

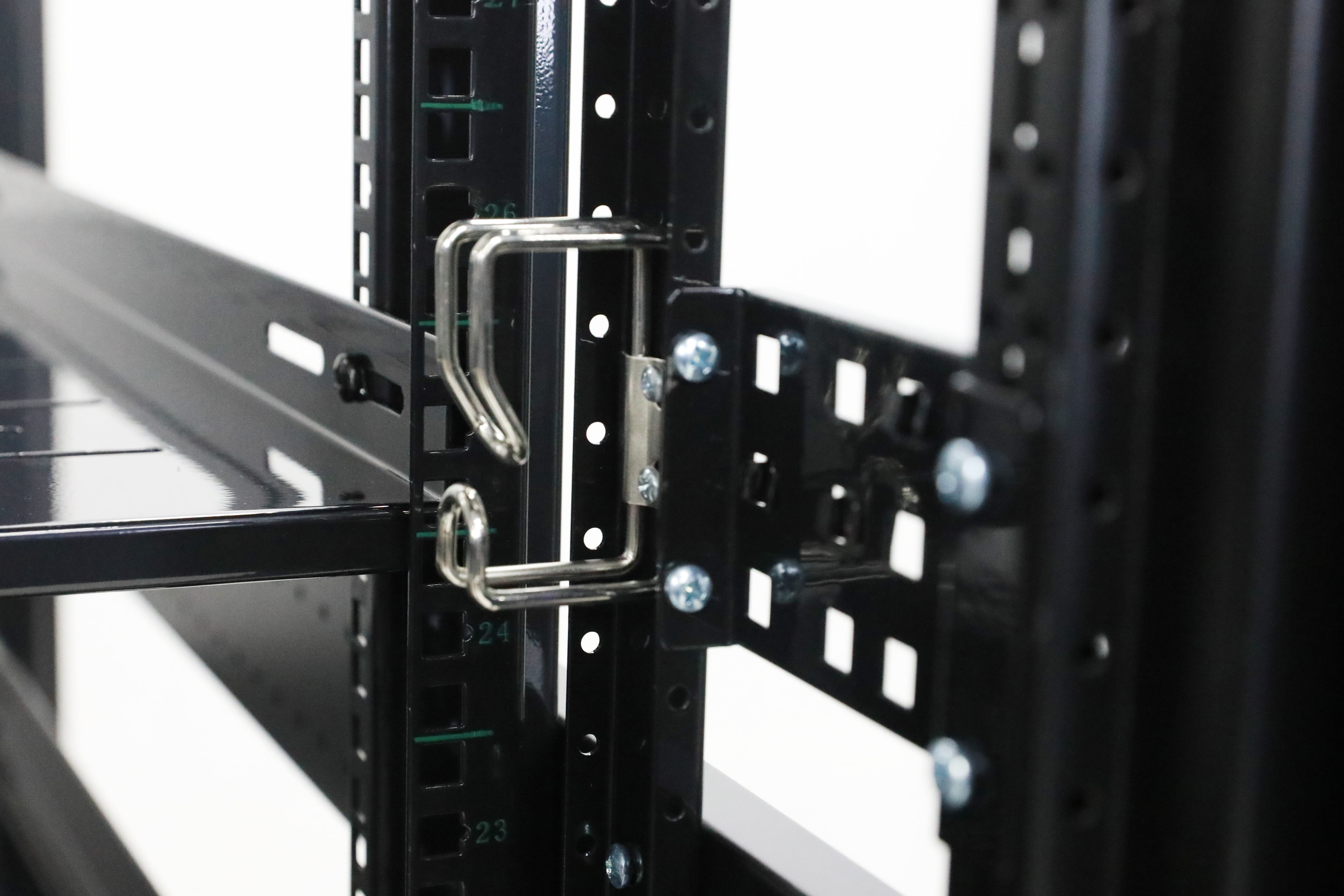

Two dual purpose full height depth adjustable PDU and cable management brackets mounted in the space with tool-less button mounting of rack
42U frame height that allows for the rack to pass through standard doors on casters
Simple external baying, allows for metric baying or on 24” center
Split side panels with single locking slam latch allows for simple removal / installation
Available in 12 standard sizes
Full depth adjustability of the 19” rails
Doors that have 77% perforation and can be hinged on either side
Two dual purpose full height depth adjustable PDU and cable management brackets mounted in the space with tool-less button mounting of rack
42U frame height that allows for the rack to pass through standard doors on casters
Simple external baying, allows for metric baying or on 24” center
Split side panels with single locking slam latch allows for simple removal / installation

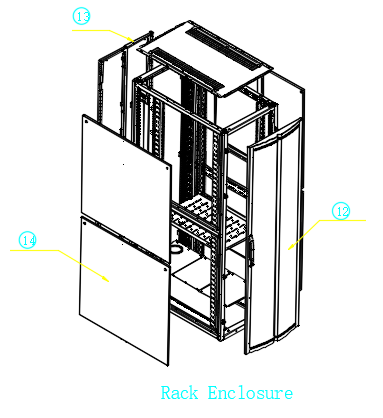

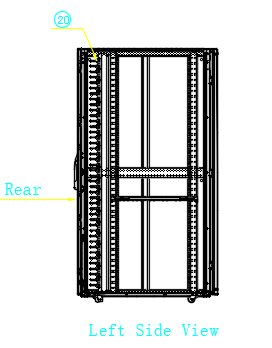

S/N | Name | Material | Quantity | S/N | Name | Material | Quantity |
1 | Front enclosure frame | SPCC1.5 | 1 | 11 | Brush | Fire-proof | 2 |
2 | Rear enclosure frame | SPCC1.5 | 1 | 12 | Front door | SPCC1.5 | 1 |
3 | Cable management rings | Galvanized round steel | 8 | 13 | Rear door | SPCC1.2 | 1 |
4 | Middle horizontal frame | SGCC1.5 | 2 | 14 | Removable side panel with lock | SPCC1.2 | 4 |
5 | Rear and bottom frame | SGCC1.5 | 4 | 15 | Front bottom cover | SGCC1.5 | 2 |
6 | Cable management teeth base | SGCC1.5 | 1 | 16 | Rear bottom cover | SGCC1.5 | 1 |
7 | Shelf | SPCC1.5 | 1 | 17 | 2 inch wheels | Customized | 4 |
8 | PDU | Customized | 2 | 18 | Cable management panel | SPCC1.5 | 1 |
9 | PDU slider | SGCC1.5 | 2 | 19 | Enclosure frame | SPCC2.0 | 4 |
10 | Roof | SPCC1.5 | 1 | 20 | Cable management teeth | Plastic | 21 |
S/N | Name | Material | Quantity | S/N | Name | Material | Quantity |
1 | Front enclosure frame | SPCC1.5 | 1 | 11 | Brush | Fire-proof | 2 |
2 | Rear enclosure frame | SPCC1.5 | 1 | 12 | Front door | SPCC1.5 | 1 |
3 | Cable management rings | Galvanized round steel | 8 | 13 | Rear door | SPCC1.2 | 1 |
4 | Middle horizontal frame | SGCC1.5 | 2 | 14 | Removable side panel with lock | SPCC1.2 | 4 |
5 | Rear and bottom frame | SGCC1.5 | 4 | 15 | Front bottom cover | SGCC1.5 | 2 |
6 | Cable management teeth base | SGCC1.5 | 1 | 16 | Rear bottom cover | SGCC1.5 | 1 |
7 | Shelf | SPCC1.5 | 1 | 17 | 2 inch wheels | Customized | 4 |
8 | PDU | Customized | 2 | 18 | Cable management panel | SPCC1.5 | 1 |
9 | PDU slider | SGCC1.5 | 2 | 19 | Enclosure frame | SPCC2.0 | 4 |
10 | Roof | SPCC1.5 | 1 | 20 | Cable management teeth | Plastic | 21 |
Model | Capacity | Dimension(W*D*H) | Cable Inlet Dimension | BU Dimension(W*D*H) | Packing Volume |
ZTmmHS6844 | 44U | 600*800*2000 | 550*90 | 650*850*2050 | 1.132 |
ZTmmHS61044 | 600*1000*2000 | 720*90 | 650*1050*2050 | 1.399 | |
ZTmmHS61144 | 600*1100*2000 | 750*90 | 650*1150*2050 | 1.532 | |
ZTmmHS61244 | 600*1200*2000 | 850*90 | 650*1250*2050 | 1.666 | |
ZTmmHS8844 | 800*800*2000 | 550*90 | 850*850*2050 | 1.481 | |
ZTmmHS81044 | 800*1000*2000 | 720*90 | 850*1050*2050 | 1.829 | |
ZTmmHS81144 | 800*1100*2000 | 750*90 | 850*1150*2050 | 2.004 | |
ZTmmHS81244 | 800*1200*2000 | 850*90 | 850*1250*2050 | 2.178 | |
ZTmmHS6848 | 48U | 600*800*2200 | 550*90 | 650*850*2250 | 1.243 |
ZTmmHS61048 | 600*1000*2200 | 720*90 | 650*1050*2250 | 1.535 | |
ZTmmHS61148 | 600*1100*2200 | 750*90 | 650*1150*2250 | 1.682 | |
ZTmmHS61248 | 600*1200*2200 | 850*90 | 650*1250*2250 | 1.828 | |
ZTmmHS8848 | 800*800*2200 | 550*90 | 850*850*2250 | 1.626 | |
ZTmmHS81048 | 800*1000*2200 | 720*90 | 850*1050*2250 | 2.008 | |
ZTmmHS81148 | 800*1100*2200 | 750*90 | 850*1150*2250 | 2.199 | |
ZTmmHS81248 | 800*1200*2200 | 850*90 | 850*1250*2250 | 2.391 |
Model | Capacity | Dimension(W*D*H) | Cable Inlet Dimension | BU Dimension(W*D*H) | Packing Volume |
ZTmmHS6844 | 44U | 600*800*2000 | 550*90 | 650*850*2050 | 1.132 |
ZTmmHS61044 | 600*1000*2000 | 720*90 | 650*1050*2050 | 1.399 | |
ZTmmHS61144 | 600*1100*2000 | 750*90 | 650*1150*2050 | 1.532 | |
ZTmmHS61244 | 600*1200*2000 | 850*90 | 650*1250*2050 | 1.666 | |
ZTmmHS8844 | 800*800*2000 | 550*90 | 850*850*2050 | 1.481 | |
ZTmmHS81044 | 800*1000*2000 | 720*90 | 850*1050*2050 | 1.829 | |
ZTmmHS81144 | 800*1100*2000 | 750*90 | 850*1150*2050 | 2.004 | |
ZTmmHS81244 | 800*1200*2000 | 850*90 | 850*1250*2050 | 2.178 | |
ZTmmHS6848 | 48U | 600*800*2200 | 550*90 | 650*850*2250 | 1.243 |
ZTmmHS61048 | 600*1000*2200 | 720*90 | 650*1050*2250 | 1.535 | |
ZTmmHS61148 | 600*1100*2200 | 750*90 | 650*1150*2250 | 1.682 | |
ZTmmHS61248 | 600*1200*2200 | 850*90 | 650*1250*2250 | 1.828 | |
ZTmmHS8848 | 800*800*2200 | 550*90 | 850*850*2250 | 1.626 | |
ZTmmHS81048 | 800*1000*2200 | 720*90 | 850*1050*2250 | 2.008 | |
ZTmmHS81148 | 800*1100*2200 | 750*90 | 850*1150*2250 | 2.199 | |
ZTmmHS81248 | 800*1200*2200 | 850*90 | 850*1250*2250 | 2.391 |
